Model NO.
2V Lead Acid Battery Balancer
Price:
USD 15.00-18.00 / pieces
Delivery:
FOB
Minimum order quantity:
2 pieces
Supply Ability:
1000 pieces / Week
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:QNBBM
  • Model Number:2V Lead Acid Battery Balancer
  • Base Material:FR-4
  • Copper Thickness:1 ounce
  • Board Thickness:2.0mm
  • Min. Hole Size:1square millimeter
  • Min. Line Width:1mm
  • Min. Line Spacing:2mm
  • Surface Finishing:spray paint
  • product name:2V Voltage Lead acid Battery balancer
  • Battery type::Gell,Flooded .Lead acid battery etc
  • Size::85*45*20mm
  • Working voltage::2V-15V
  • Balance Mthod::Energy transfer&Dynamic
  • Peak balance current::10A
  • Voltage difference VS Balance current::300mv-1A; 1V-3A
  • Wokring efficiency on 1A::More than 94%
  • Working temperature::-40-80 degree
  • BMS limited::Can work with BMS ,or work independently

2V Voltage Lead acid Battery balancer

2V Voltage Lead acid Battery balancer



Keep the voltage difference of each cell within 10mv.

Extend the battery span life 2-3times.Without capacity & voltage & battery type limitation .

Your best battery pack protector. Perfect combination with bms Let's Save cost from now.







Energy Transfer/Dynamic BMS System Lead acid /Lithium battery balancer :





Product Description





Parameter of Deligreen Battery Equalizer:



 2_112_102_052_042_062_02

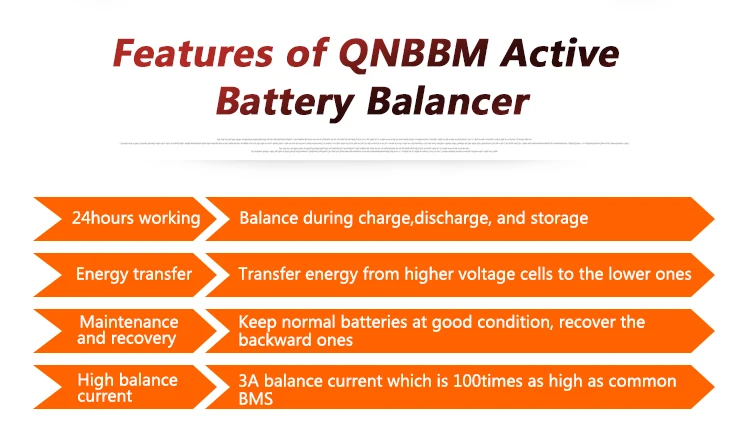

Features of Deligreen Battery Equalizer:



Online Working      To blance during charge,discharge,storage
Dynamic equalizing:      To prevent batteries out of balancing all the time
Engery transfer:      Transfer energy from higher voltage cell to lower ones
Maintenance and recovery:      To Keep normal batteries at a good condiction ,recover the  backwards ones
Sharing capacity:      Let the power  flow from one cell to another and share them among the cells
Simple installation:      Connect the balancer together then connect to battery+ and battery-
Independent:      No affect to battery pack wiring,no impact to charging and discharging



QQ20181111142149

1

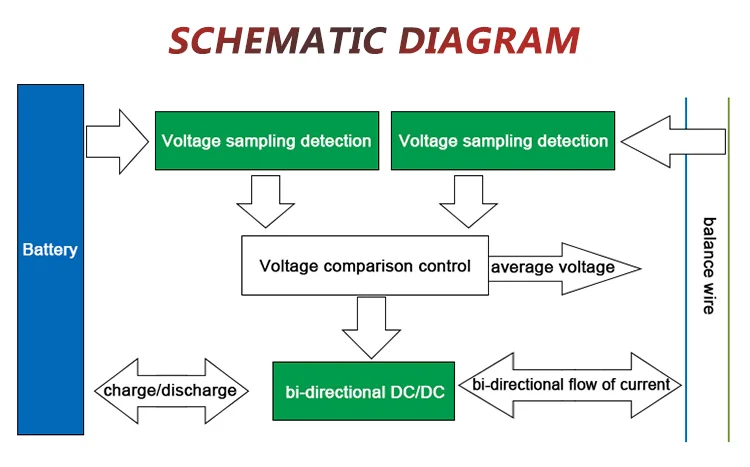

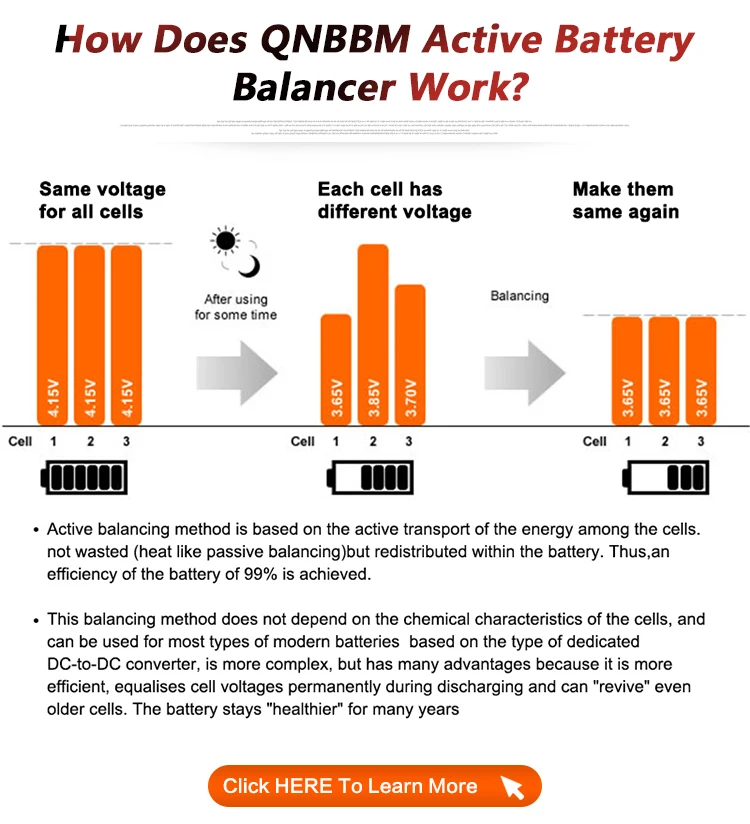

How is the balancer working?

Below diagram show you how balancer work,Each battery compared to a cup,each balancer is like a pump,with the pumps ,all the cups will have the same level of water









Company Information



Patent of the Battery equalizer :

QQ20180809111827





Our Services



Massive Stocks

Warranty three years

Fast delivery :1-2days

Customized service acceptable

Online service reply within 24 Hours









FAQ





User Attention:



Firstly, if your order 1S balancers,we have 20cm wires one the balancers with M8 terminals as default .



If you need other size of terminals and different length of wires,pleae tell us.



If you order balance modules,mo terminals or wires.



Second,The balance power consumption is less than 50mW.



If you don't use the battery for over 2 months,please either disconnet the balancers ,or recharge the battery once a month or once two months. Recharging the batteris occasionally is better for your batteries as well.



Third, we have wiring diagram on the balance modules ,don't make any mistakes,if you are unsure of installation, please contact our sales person,we will be glad to help you





  •
