Model NO.
8s
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Weight:1KG
  • Usage:Motorcycle / Scooter
  • Size:180*70*20mm
  • Voltage:12V
  • Model Number:8s
  • Brand Name:QNBBM
  • Maintenance Type:Free
  • Nominal Capacity:20AH-1200AH
  • Sealed Type:Sealed
  • Products Name::Lithium Battery Balancer Multiple Battery Balancer Equalizer 24V
  • Key word::battery equalizer 24v
  • Battery method::Energy transfer/Dynamic
  • Battery type::Lifepo4,LiMnO4,AGM,GELL,Flooded battery and so on
  • Battery Capacity::unlimited
  • Power consumption::lower than 50mw
  • Balance current::6A
  • Work efficiency::over 94%
  • BMS limited::can work with BMS or can work independently
  • Sample/oem/odm services::acceptable

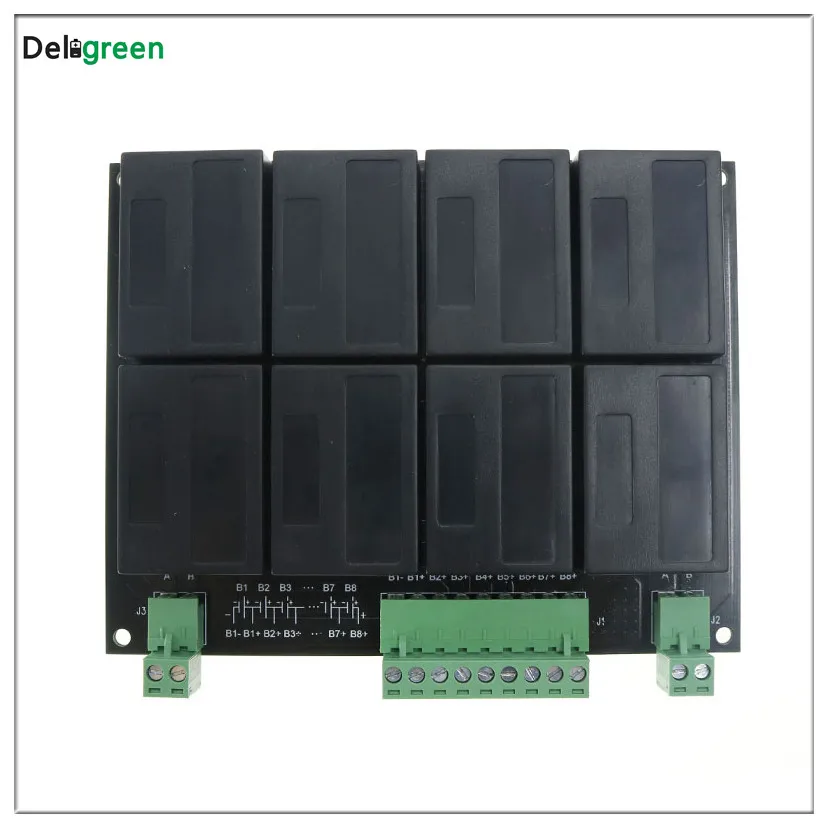

8S Lithium Battery Balancer Module Multiple Battery Balancer Equalizer 24V:



Related products:



6_.jpgTC12_.jpg10_.jpgGBS 20AH_.jpg





Parameter of Deligreen Battery Equalizer:






 Features of Deligreen Battery Equalizer:



Online Working      To blance during charge,discharge,storage
Dynamic equalizing:      To prevent batteries out of balancing all the time
Engery transfer:      Transfer energy from higher voltage cell to lower ones
Maintenance and recovery:      To Keep normal batteries at a good condiction ,recover the  backwards ones
Sharing capacity:      Let the power  flow from one cell to another and share them among the cells
Simple installation:      Connect the balancer together then connect to battery+ and battery-
Independent:      No affect to battery pack wiring,no impact to charging and discharging








How is the balancer working?

Below diagram show you how balancer work,Each battery compared to a cup,each balancer is like a pump,with the pumps ,all the cups will have the same level of water








Patent of the Battery equalizer :

QQ20180809111827





Massive Stocks

Warranty three years

Fast delivery :1-2days

Customized service acceptable



.jpg







User Attention:



Firstly, if your order 1S balancers,we have 20cm wires one the balancers with M8 terminals as default .



If you need other size of terminals and different length of wires,pleae tell us.



If you order balance modules,mo terminals or wires.



Second,The balance power consumption is less than 50mW.



If you don't use the battery for over 2 months,please either disconnet the balancers ,or recharge the battery once a month or once two months. Recharging the batteris occasionally is better for your batteries as well.



Third, we have wiring diagram on the balance modules ,don't make any mistakes,if you are unsure of installation, please contact our sales person,we will be glad to help you

Application of Deligreen Battery Equalizer:



Power battery:Electric Car/Bus/Scoote/Golf cart/Boat etc



Storage battery: Storage power station ,Wind power,Solar power etc



Communication power:Communication base station ,substations etc
