Model NO.
WB-LYP160AHA-A
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Type:Li-Ion
  • Type:Ni-CD
  • Type:Ni-Mh
  • Type:LiMnO2
  • Type:Li-polymer
  • Certification:UL
  • Certification:ce
  • Brand Name:Winston
  • Model Number:WB-LYP160AHA-A
  • Model:WB-LYP160AHA-A
  • Norminal Voltage:3.3v
  • Operating Voltage:2.8v-4.0v
  • Battery type:LifePO4, LifeYPO4
  • Size:182*70.5*277mm
  • Certification:CE/IEC62196
  • Internal Risistance:≤0.4mΩ
  • Max charge current:3CA
  • Standard charge current:0.5C
  • Standard discharge current:0.5CA

 This link for copper connertors only



Technical specification of cells



Complete datasheet
Recommended initial and subsequent charging is to 3.65 V.
Nominal capacity of the cells is 160Ah
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continously.
Operating temperature -45°C up to 85°C (discharging)

These battery cells are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
All cells are supplied new directly from the manufacturer.


We also can serve battery voltage balancers &bms

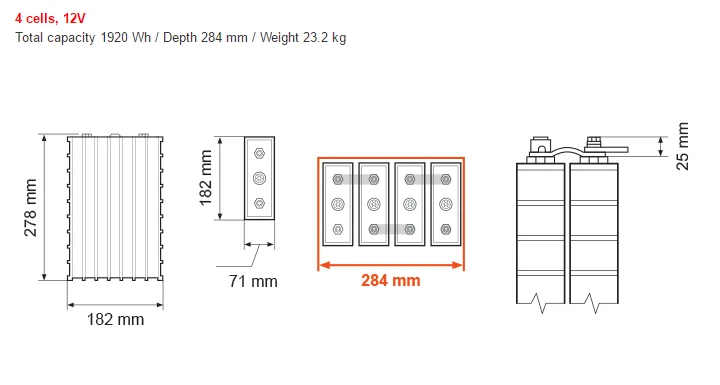

Size of pack




Winston 12V-160aH.png

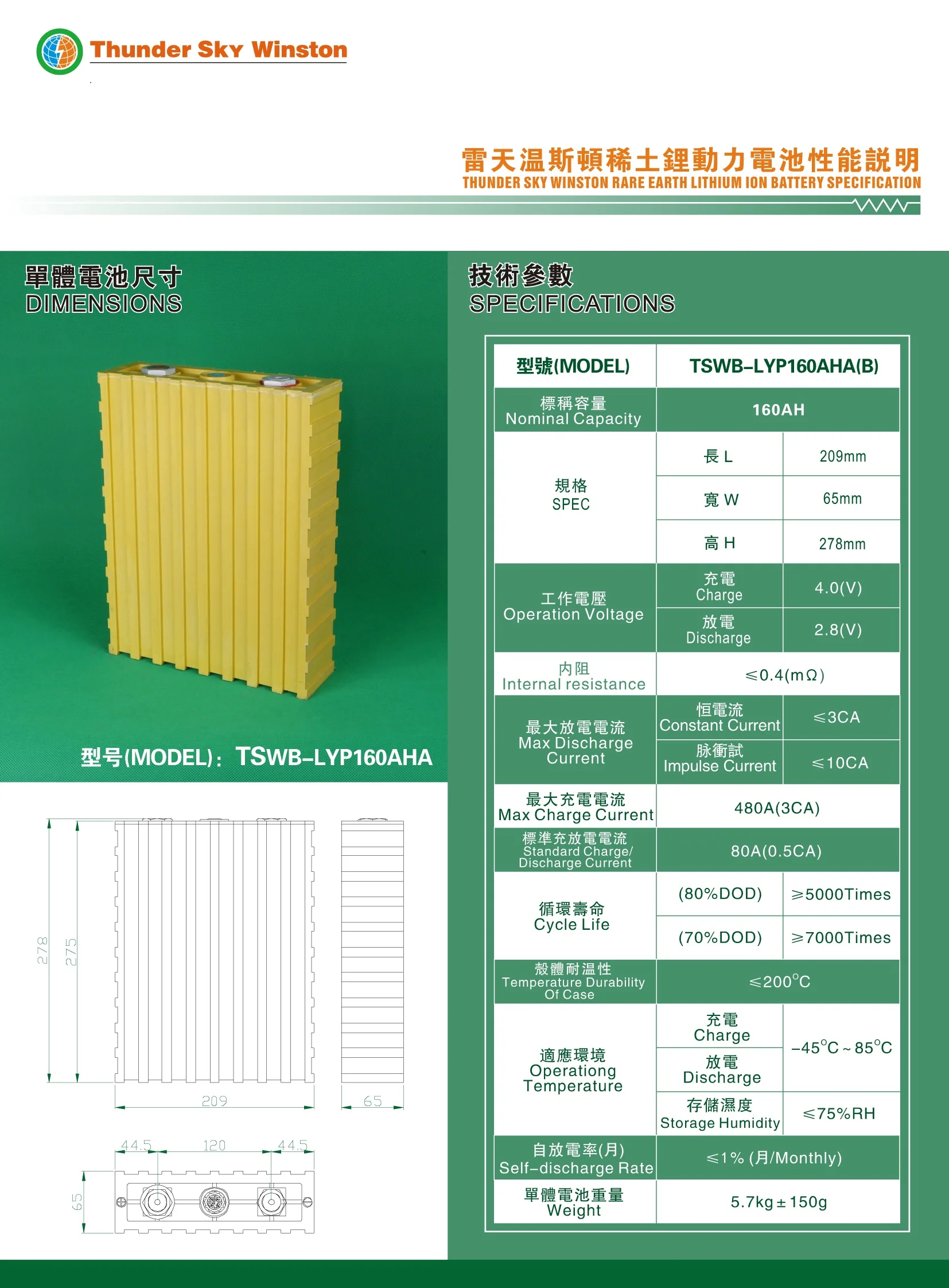

Specification Of LifeYpo4 Battery



 TSWB-LYP160AHA-B ALI.jpg



Models of Winston Thurdsky LifePO4 Battery:



Capacity

Description

Dimension(mm)

Weight (kg)

Inner resistance

40AH

WB-LYP 40Ah

115×47×183

1.5

≤0.7 mΩ

60AH

WB-LYP60Ah

114×61×203

2.3

≤0.55 mΩ

90AH

WB-LYP90AHA-A

143×68×218

3.0

≤0.5 mΩ

WB-LYP90AHA-B

143×61×218

3.0

≤0.5 mΩ

100AH

WB-LY100AHA-A

143×67×218

3.5

≤0.45mΩ

WB-LY100AHA-B

179×62×218

3.5

≤0.45mΩ

130AH

WB-LYP130AHA

360x55x177

5.2

≤0.45mΩ

160AH

WB-LYP160AHA-A

182×70.5×277

5.6

≤0.4 mΩ

WB-LYP160AHA-B

209×65×278

5.6

≤0.4 mΩ

200AH

WB-LYP200AHA-A

182×100×278

7.3

≤0.35 mΩ

WB-LYP200AHA-B

361×55.2×256

7.3

≤0.35 mΩ

260AH

WB-LYP260Ah

361×55.5×283

8.7

≤0.3 mΩ

300AH

WB-LYP300Ah

362×55.5×306

9.7

≤0.3 mΩ

400AH

WB-LYP400AHA-A

449×70.5×282

13.5

≤0.3 mΩ

WB-LYP400AHA-B

460×65×285

13.5

≤0.3 mΩ

700AH

WB-LYP700Ah

627×67×305

21

≤0.3 mΩ

1000AH

WB-LYP1000AHA-A

846×71×373

41

≤0.3 mΩ

WB-LYP1000AHA-C

560×130×356

41

≤0.3 mΩ







Why LiFePO4 over LeadAcid


Discharge test of SLA vs. LiFePO4 batteries

Winston LiFeYPO4 technology outperforms conventional AGM,SLA in several aspects.

They work longer (lifetime, cycle-life), our 10 years experience shown avarage lifespan of 5000 cycles (depending on the discharge rates, minimum 2000, maximum observed 8000).

More poweful, with available continious discharge rate at 3C (3 times its capacity), LiFeYPO4 provide more energy than AGM,SLA.

No acids, unlike AGM,SLA the LiFePO4 does not contain life threathening substances.

Non explosive, Li-Pol (Polymer) and other batteries frequently used in consumer electronic (Phones, Tablets) are extremely dangerous when physically damaged or misused. You can actually pierce LiFePO4 with metal and not cause fire or explosion. Shortcut it for long periods with the same (little to none) effect.


Our Serivces

winston Battery is high power lithium iron phosphate (LiFePO4) batteries.We are the official partner of Thunder Sky Winston lithium battery cells for sales and technical support.Warranty is 24 Month

With over eight years friendly cooperation,we had many safety delivery method for options ,All the fresh cells direct from factory with best services
Li-ion batteries are classified as Dangerous Goods for transport according to the UN Model regulation for the Transport of Dangerous Goods.They are classified under CLASS 9 Dangerous Goods due to their dual hazard properties associated with their chemical and electrical content
UN 3480 : Lithium-Ion Batteries
We ship lithium ion battery by a 20 feet Dangerous Goods container by sea from Shenzhen to USA every month.
For more information of Thunder Sky Winston LiFePO4 Battery Cells. pls feel free to contact Deligreen



 Factory view:

image (3).jpg

12V 4.8kW Preselected set of Winston thundersky LiFeYPO4 cells 160AH WB-LYP160AHA-A battery lifepo4 Winstons
