Model NO.
DS32S
Delivery:
FOB
Quantity:
  • Place of Origin:CN
  • Type:Plug With Socket
  • Grounding:Standard Grounding
  • Application:Residential / General-Purpose
  • Brand Name:DUOSIDA
  • Model Number:DS32S
  • Products Name::32A socket Original SAE J1772 AC Inlet 120V/240V AC Electric Plug
  • Key word::electrical multi socket plug
  • Grounding::Standard Grounding
  • Mechanical life::no-load socket in/pull out >10000 times
  • Operating temperature::-30°C ~ +50°C
  • Case Material::Thermoplastic
  • Certifications::CE, TUV, UL
  • Withstand Voltage::2000V
  • Rated current::32A
  • Application::Automotive

32A Multiple  socket Original SAE J1772 AC Inlet 120V/240V AC Electric Plug without Cable for EV/Electric Car:









Specification of Type1 AC Inlet socket:



Insert arrangements and functional definition



Terminal name

functional definition

L1

Live wire

L2/N

Neutral wire

Equipment Ground

PE

Control Pilot

Control Pilot

Proximity Detection

Proximity Detection



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

V2-DSS-EV16S

5

3*2.5mm2+2*0.5mm2

The length of the cable can be customized

V2-DSS-EV32S

5

3*6mm2+2*0.5mm2



Charging Coupler Interface

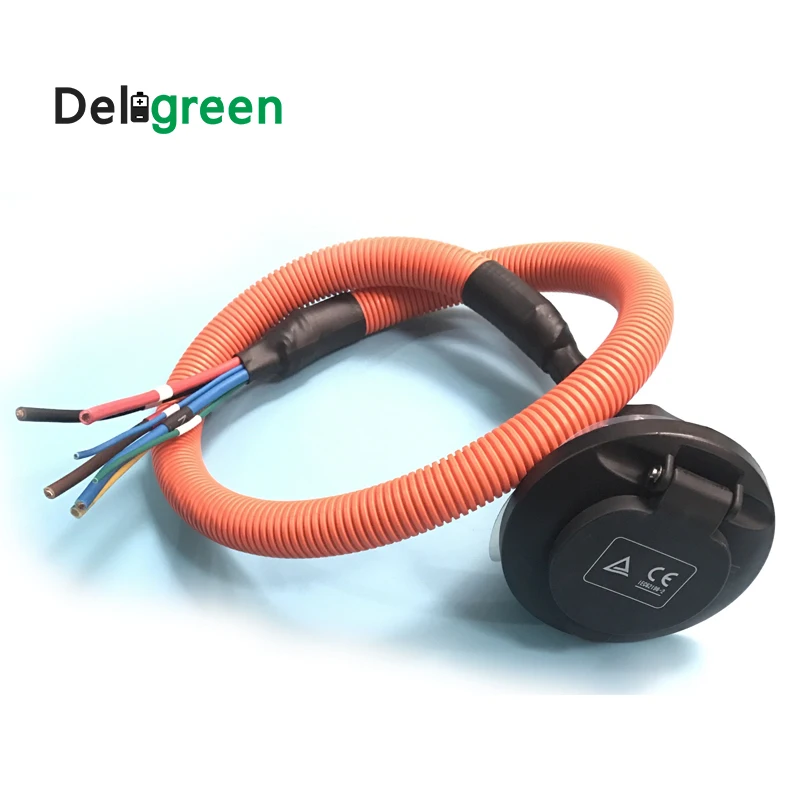

Products image of Type2 AC inlet :










Products Certification & Application:
