Model NO.
125A 750V DC
Delivery:
FOB
Quantity:
  • Place of Origin:Zhejiang
  • Model Number:125A 750V DC
  • Brand Name:Deligreen
  • Products Name::125A 750V DC Fast Charge Socket Fireproof Electrical Charger Socket
  • Key word::Electric DC plugs
  • Grounding::Standard Grounding
  • Mechanical life::no-load socket in/pull out >10000 times
  • Operating temperature::-30°C ~ +50°C
  • Case Material::Thermoplastic
  • Certifications::CE, TUV, UL
  • Withstand Voltage::2000V
  • Rated current::16A/32A
  • Application::Automotive

 125A 750V DC Fast Charge DC Socket Fireproof Waterproof Electrical Large Amp Charger Plug and Socket :

 Related Products:

KH .jpgTIM20171026172716__.jpg.jpg22_.jpg.jpg .jpg









Features  of  DC Inlet socket:



Meet GB/T 20234.3-2015 regulations and requirements

Rated current: 80A or 125A or 200A or 250A

Nice appearance, hand-held ergonomic design, easy plug

>2000MQ(DC1000V

Insulation resistance: 2000MQ2(DC1000V)Safety pins insulated head design to prevent accidental direct·
<50K

contact with staff

Terminal temperature rise: <50K

Excellent protection performance, protection grade IP55

Withstand voltage: 5000V

(working condition)

U94V-0Mechanical life: no-load plugin/pull out> 10000 times

Case Material: Thermoplastic, flame retardant grade UL94-0

Impat of external force: can afford 1m drop and 2t vehicle run

Iver thermoplastic on the topover pressure

Environmental performance-30℃~+50°℃C

Operating temperature:-30℃~+50℃



 Model Selection and the standard wiring :



Model

Number of inserts

Cable Spec.

NV3-DSD-EV80P

80A

2P(2*0.75mm)2+2P(2*0.75mm)2+3*16mm2+2*4mm2

NV3-DSD-EV125P

125A

2*35mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2

 NV3-DSD-EV250P              250A2*80mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2

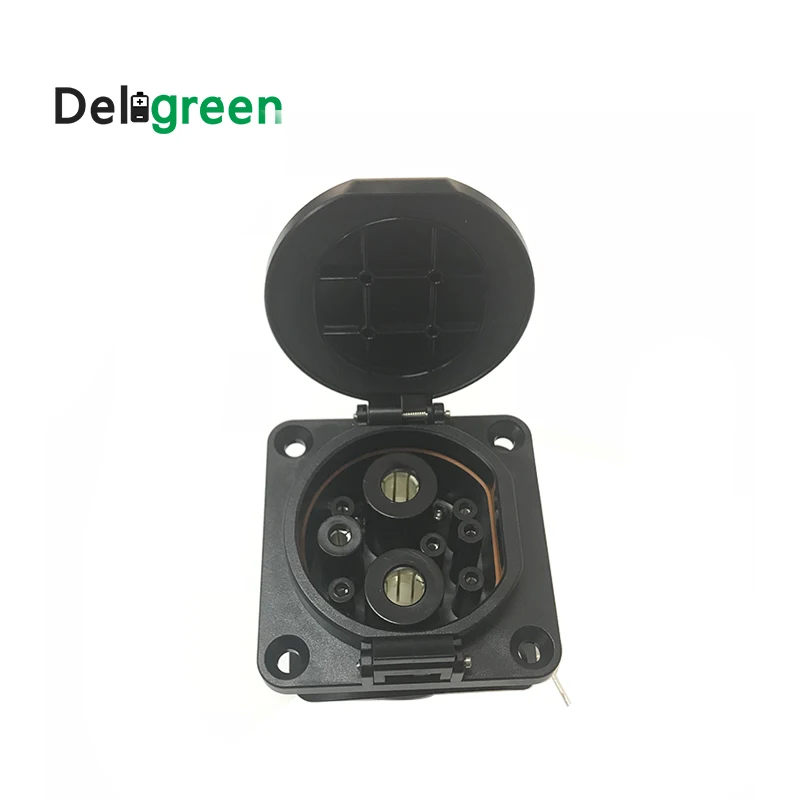

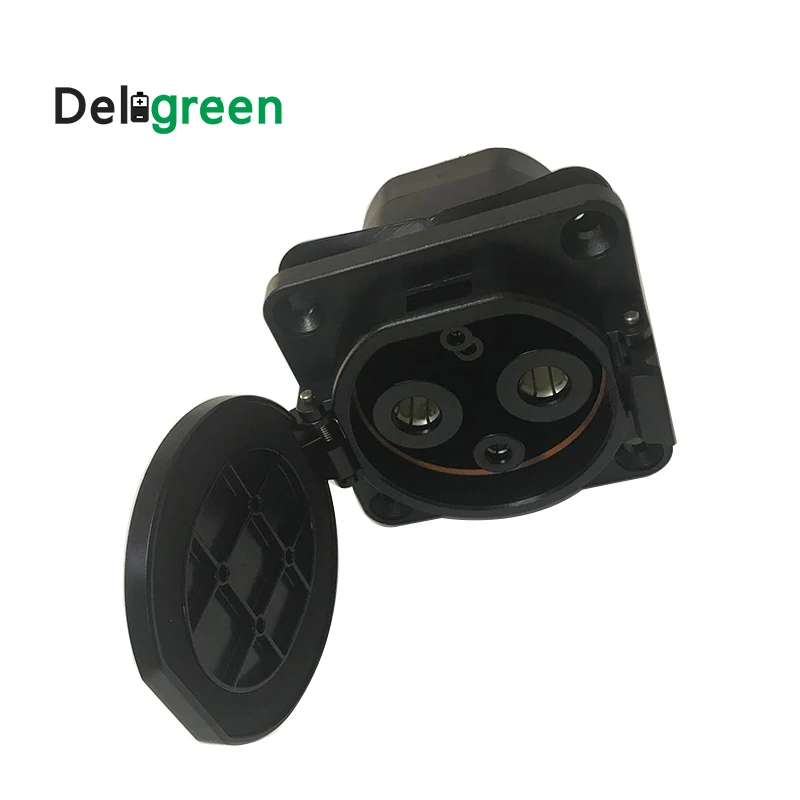

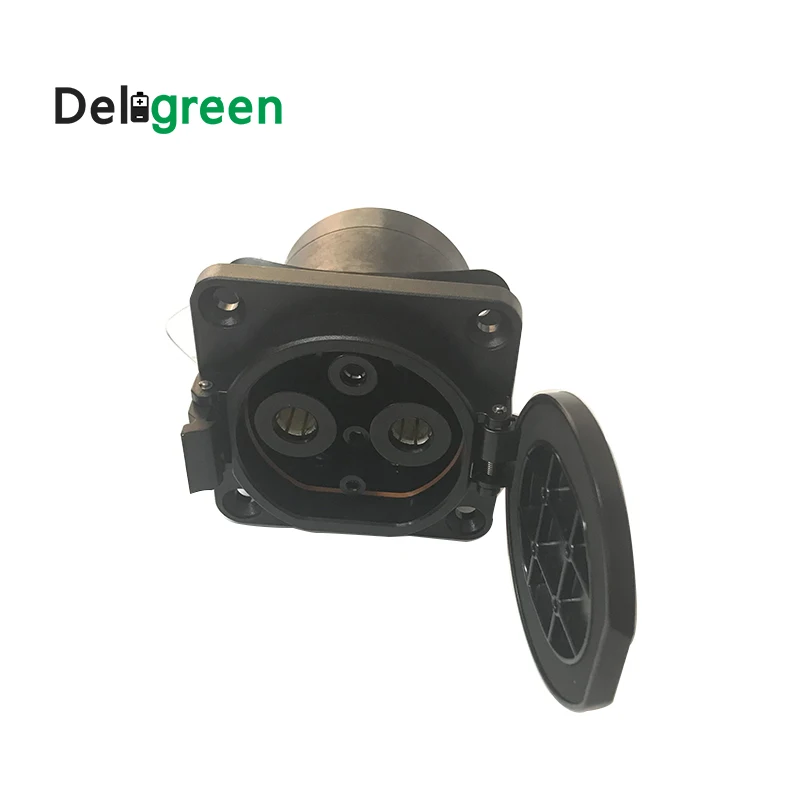

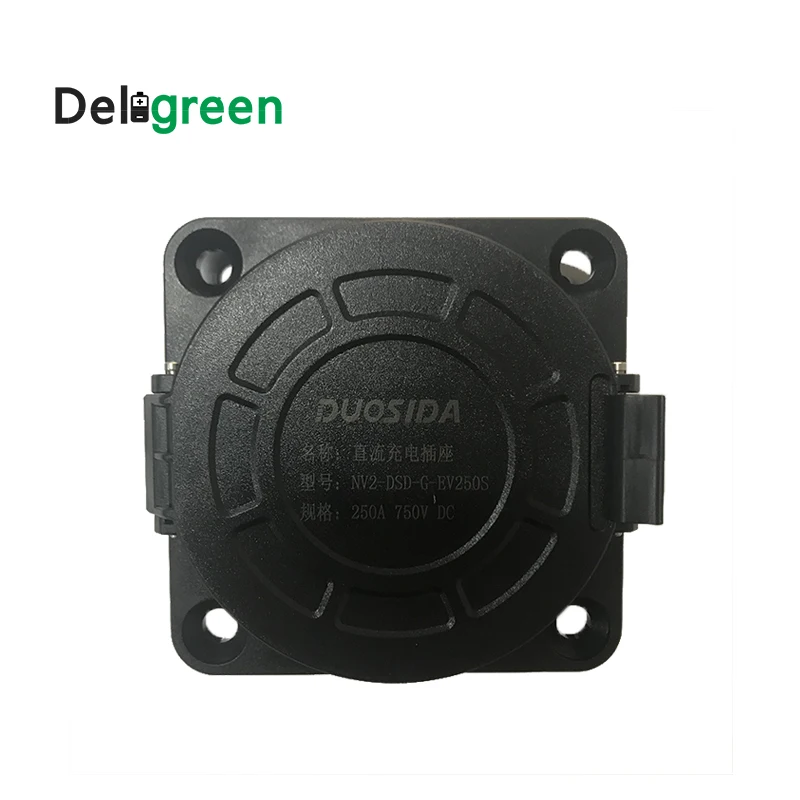

Products Image of DC Socket:










Products Certification & Application:
