Model NO.
16A type2 to type2
Delivery:
FOB
Quantity:
  • Place of Origin:Zhejiang
  • Model Number:16A type2 to type2
  • Brand Name:Deligreen
  • Products Name::16A type2 to type2 Electrical Plugs Sockets 240v EV Charger Cable
  • Key word::240v EV Charger Cable
  • Grounding::Standard Grounding
  • Mechanical life::no-load socket in/pull out >10000 times
  • Operating temperature::-30°C ~ +50°C
  • Case Material::Thermoplastic
  • Certifications::CE, TUV, UL
  • Withstand Voltage::2000V
  • Rated current::16A/32A
  • Application::Automotive

16A type2 to type2 Electrical Plugs and Sockets 240v EV Charger Cable for Electric Car Charging :



 Related Products:

KH .jpgTIM20171026172716__.jpg.jpg22_.jpg.jpg .jpg









Specification of Type2 To Type2 AC Inlet socket:

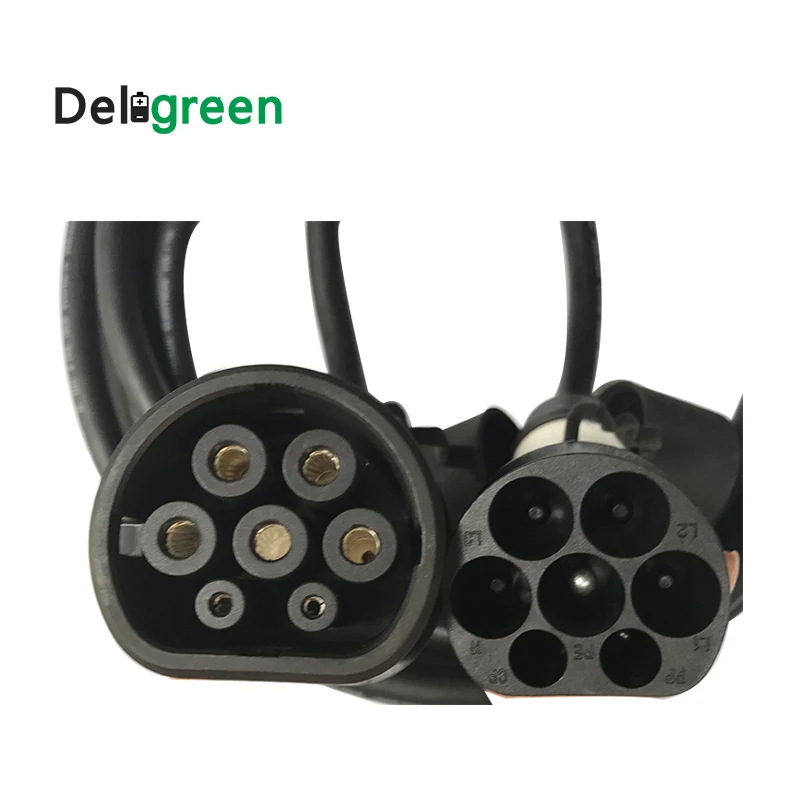

Insert arrangements and functional definition



Terminal name

functional definition

L1

Live wire

L2/N

Neutral wire

Equipment Ground

PE

Control Pilot

Control Pilot

Proximity Detection

Proximity Detection



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

V2-DSS-EV16P

5

3*2.5mm2+2*0.5mm2

The length of the cable can be customized

V2-DSS-EV32P

5

3*6mm2+2*0.5mm2



Charging Coupler Interface

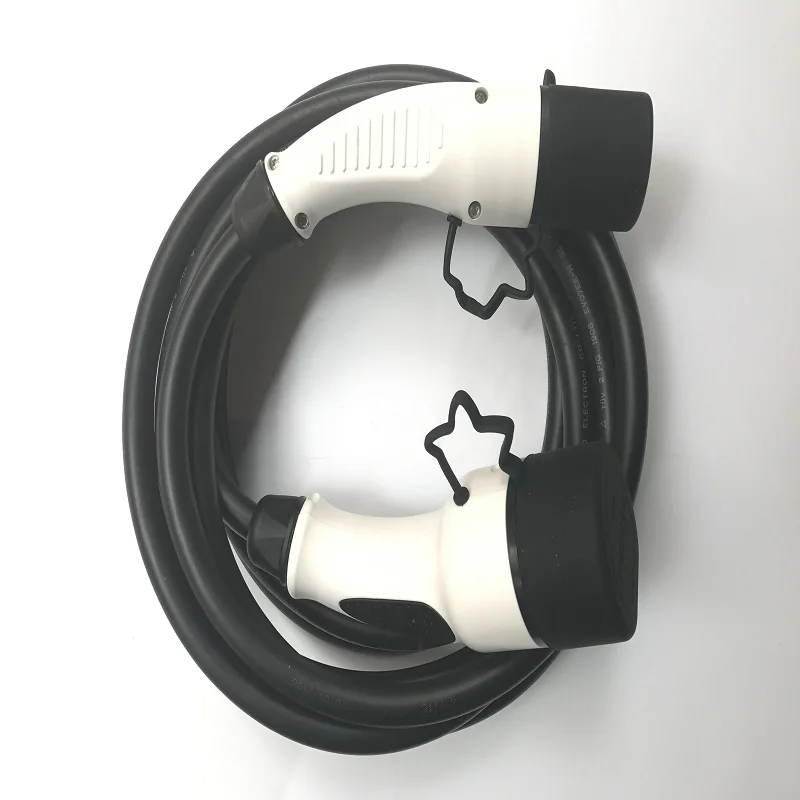

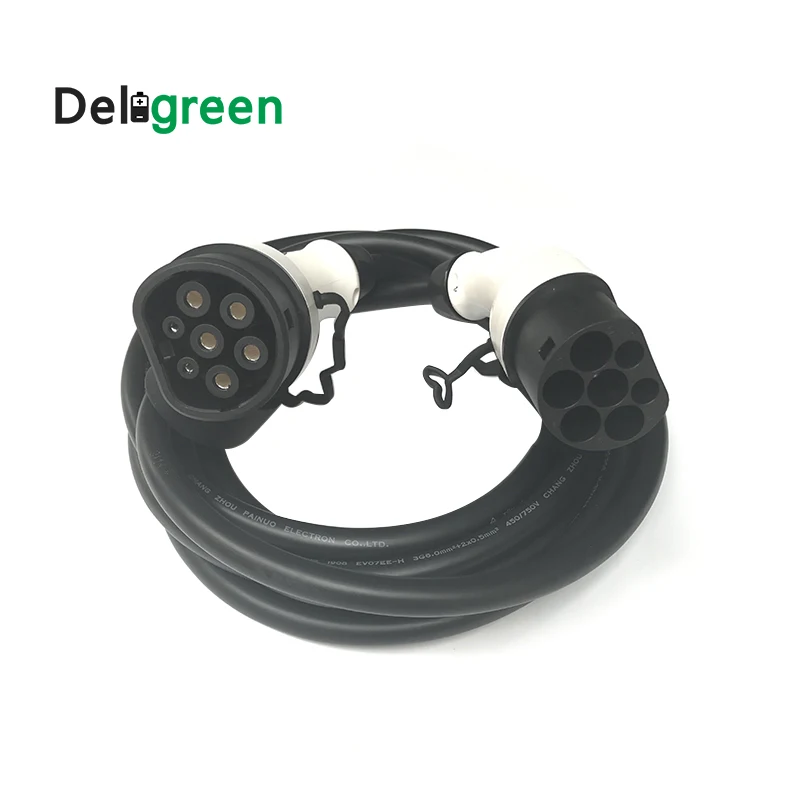

Products image of Type2 to Type2 AC plug :












Products Certification & Application:
