Model NO.
32A Type2 Plug
Delivery:
FOB
Quantity:
  • Place of Origin:Zhejiang
  • Model Number:32A Type2 Plug
  • Brand Name:Duosida
  • Products Name::Duosida 32A power supply side standard inlet without Cable EU plug
  • Key word::16a 3-pin socket
  • Grounding::Standard Grounding
  • Mechanical life::no-load socket in/pull out >10000 times
  • Operating temperature::-30°C ~ +50°C
  • Case Material::Thermoplastic
  • Certifications::CE, TUV, UL
  • Withstand Voltage::2000V
  • Rated current::16A/32A
  • Application::Automotive

EU Duosida 32A power supply side IEC62196-2 European standard inlet without Cable EU plug for Charging Station:



 Related Products:

KH .jpgTIM20171026172716__.jpg.jpg22_.jpg.jpg .jpg



Specification of Type2 AC Inlet socket:



Insert arrangements and functional definition





Mark

functional definition

1- (L1)

AC power

2- (L2)

AC power

3- (L3)

AC power

4- (N)

Neutra

5- (PE)

PE

6- (CP)

Control confirmation

7- (PP)

Connection confirmation



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

DSIEC2e-EV16S

7

3*2.5mm+2*0.5mm2

The length of the cable can be customized

DSIEC2e-EV32S

7

3*6mm+2*0.5mm2



Charging Coupler Interface

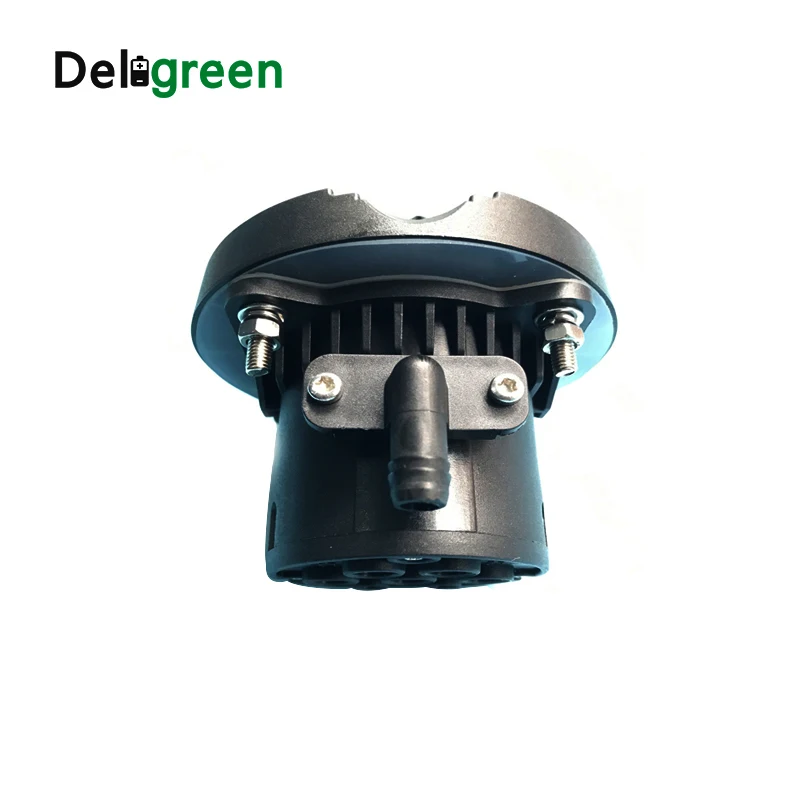

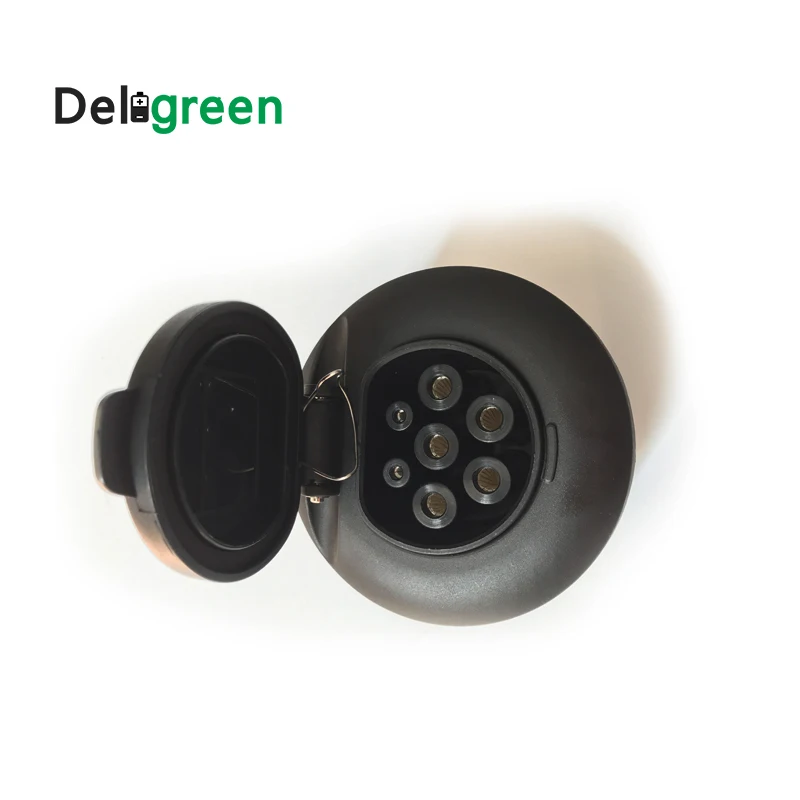

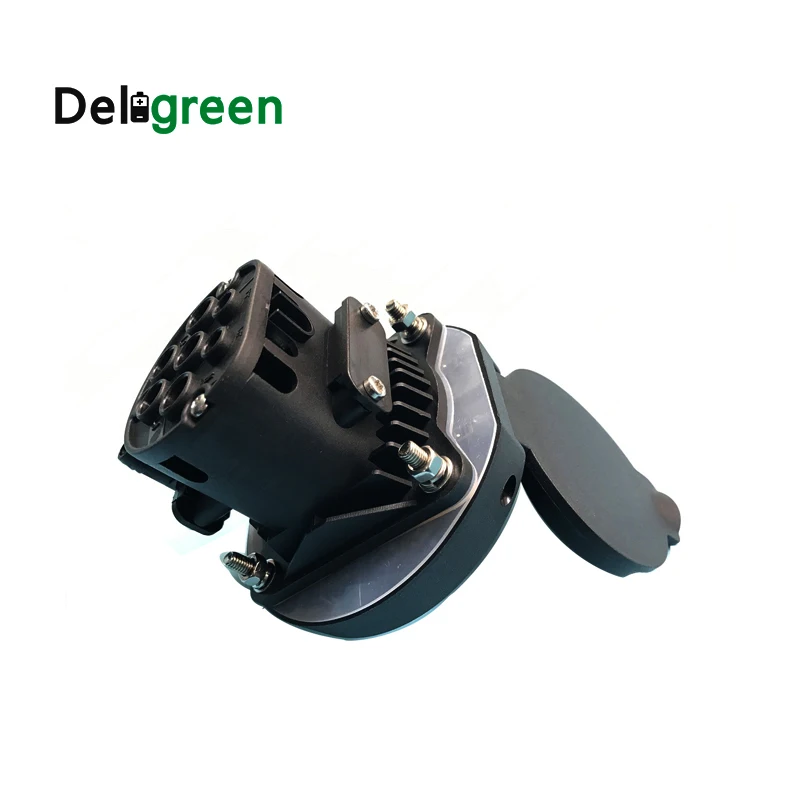

Products image of Type2 AC inlet :









Products Certification & Application:
