DUOSIDA 32A SAE J1772 AC Plug 250V EV Charging Plug Type 1 Plug Connector Wholesale Supplier In Stock

Model NO.
V2-DSS-EV32P-
Delivery:
FOB
Quantity:
  • Place of Origin:CN;JIA
  • Type:Floor Socket
  • Grounding:Standard Grounding
  • Application:Industrial
  • Brand Name:Dostar
  • Model Number:V2-DSS-EV32P-
  • Rated Voltage:220V-250V
  • Rated Current:32A
  • Rated current::32A
  • Type:Type 1 plug
  • In stock or not:In stock
  • Mechanical life:>10000 times no-load socket in/pull out
  • with cable or not:no cable
  • Certifications::CE, TUV, UL
  • Operating temperature::-30°C ~ +50°C
  • Case Material::Thermoplastic
  • Withstand Voltage::2000V
  • Application:electric car charging

Buy 32A SAE J1772 Charger Plugs with 2M Cable 250V Standard Grounding AC  220V  Electric  Plug Supplier From Alibaba :





Specification of Type1 AC Inlet socket:



Insert arrangements and functional definition



Terminal name

functional definition

L1

Live wire

L2/N

Neutral wire

Equipment Ground

PE

Control Pilot

Control Pilot

Proximity Detection

Proximity Detection



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

V2-DSS-EV16P

5

3*2.5mm2+2*0.5mm2

The length of the cable can be customized

V2-DSS-EV32P

5

3*6mm2+2*0.5mm2



Charging Coupler Interface

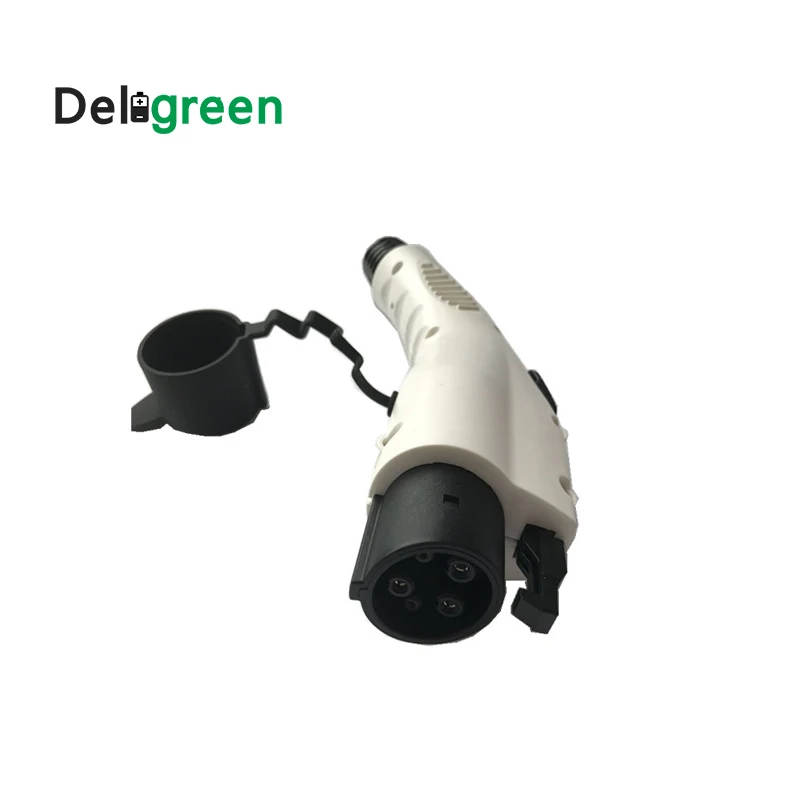

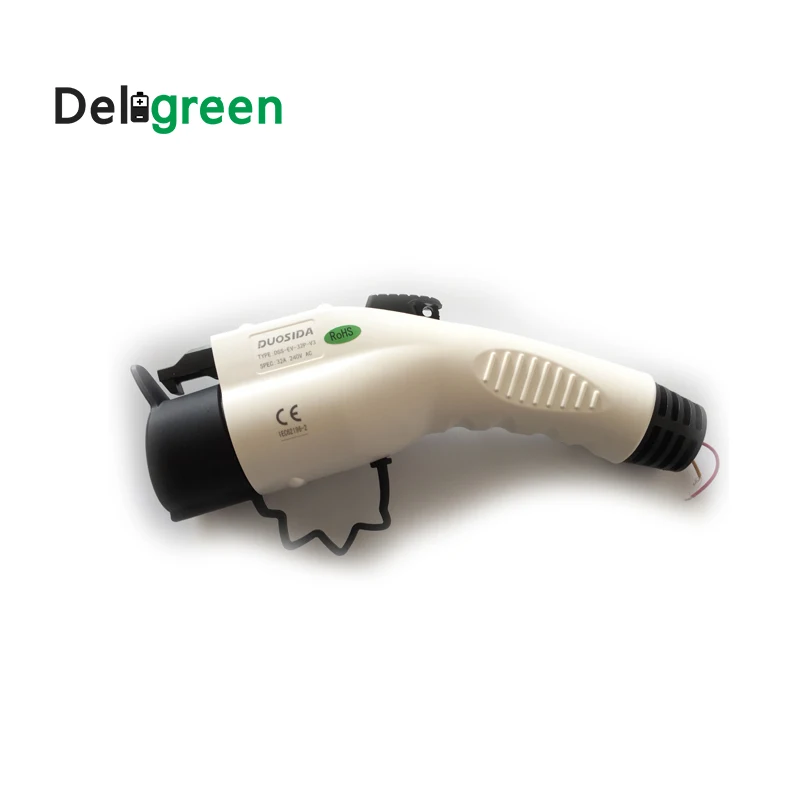

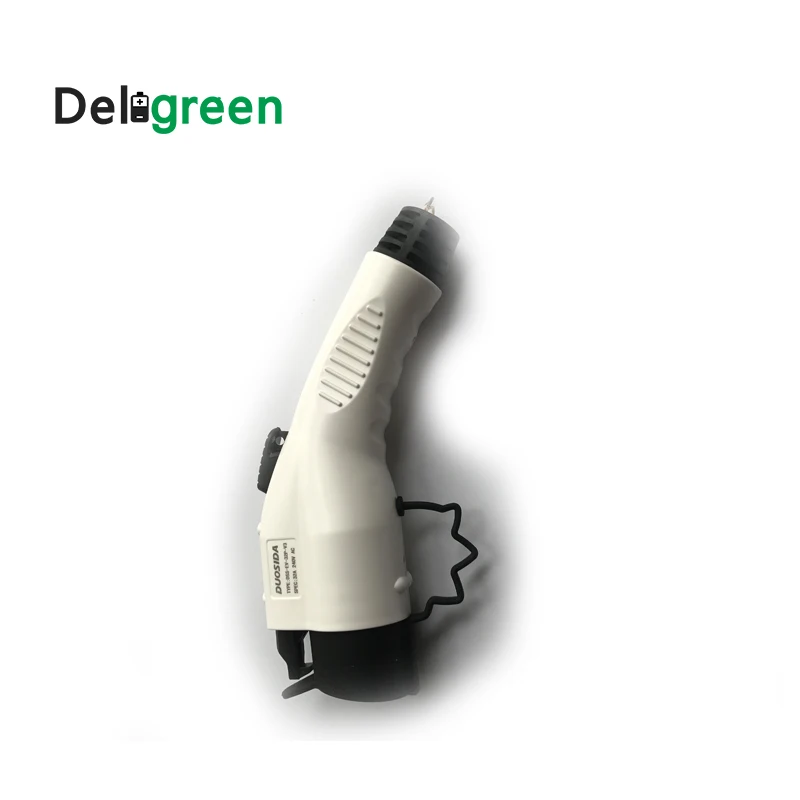

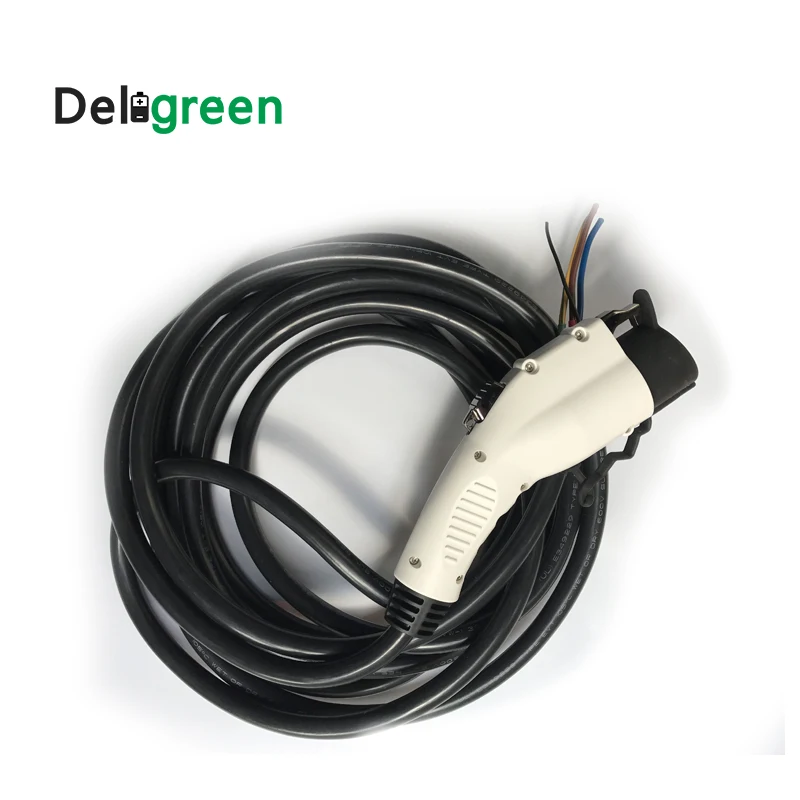

Products image of Type1 AC inlet :












Products Certification & Application:





 Buy 32A SAE J1772 Charger Plugs with 2M Cable 250V Standard Grounding AC  220V  Electric  Plug Supplier From Alibaba
