Model NO.
GBS-LFP200AH
Delivery:
FOB
Quantity:
  • Anode Material:Lithium Cobalt Oxide
  • Housing:plastic
  • Application:Power Tools
  • Application:electrocar
  • Application:Energy storage
  • Application:LAPTOP
  • Application:MOBilePhone
  • Application:IOT
  • Application:AGV
  • Certification:UL
  • Certification:ce
  • Brand Name:GBsystem
  • Model Number:GBS-LFP200AH
  • Discharge Current:3C
  • Charge Current:1C
  • Weight:7
  • Size:142*57*493mm
  • Voltage:3.2V
  • Products Name::Rechargeable 3.2V 200ah UPS Long life solar battery supplier in china
  • Moudle::GBS-LFP200AH
  • Application::EV,Solar,UPS
  • Cycle life::2000times
  • Certificate::UL/CE/ROHS approved
  • Storage temperature::0-45 degrees
  • Operating temperature::-25 to 65degrees
  • Sample/oem/odm services::Acceptable

Large Capacity Rechargeable 3.2V  200ah UPS Long life solar battery supplier in china :



Size of GBS LifePO4 Battery:

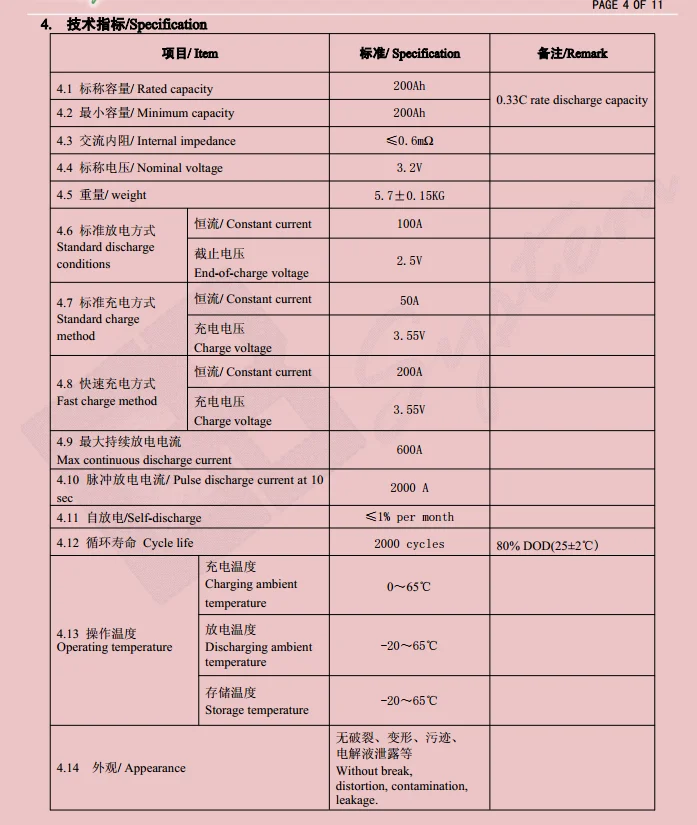

 Specification of GBS LifePO4 battery :







Item

Specification

Remark

Rated capacity

200Ah

0.33C rate discharge capacity

Minimum capacity

200Ah

Internal impedance

0.6M ohm



Nominal voltage

3.2V



weight

6.7±0.15KG



Standard discharge

conditions

Constant current

100A



End-of-charge voltage

2.5V



Standard charge

method

Constant current

50A



Charge voltage

3.55V



Fast charge method

Constant current

200A



Charge voltage

3.55V



Max continuous discharge current

180A



Cycle life

2000 cycles

80% DOD

Operating temperature

Charging ambient

temperature

0~65℃



Discharging ambient

temperature

-20~65℃



Storage temperature

20~65℃



Appearance

Without break,

distortion, contamination,

leakage.







Advantage of GBS Life PO4 Battery:



1.Output with high efficiency :Standard discharge current is 0.3C-0.8C,instant impulse discharge current is 10C for 10 seconds



2.Good perfomance under high temperature,it could work under  65℃ temperature.The battery structure is safe and good



3.Good performance under low temperature,discharge capacity decreased to over 78% under 0℃ and discharge capacity decreases to over 70% under-20℃



4.Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well.

When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



5.Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).



6.It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.



7.Low cost without pollution during manufacture and usage.









Buyers attention:



Please check if spare parts are completed when open the package and read the operation manual carefully.



Do not make the battery Short Circuit, do not over charge and discharge.



Please charge the new battery to full capacity before discharge for the first use.



The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



Checking the voltage of battery, normally it is 3.2V-3.3V.



Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



Rivet or screw is used for battery connector.Please use copper part to connect battery packs and fix with hydraulic pressure plier ,



we could also provice the relevant connection which fixed with screws.The charger used should be approved by our company in order to match with our lithium batteries



It will shorten battery cycle lifetime and damage battery due to over charge and over discharge



If not do according to the above ,it won't be within our company warranty

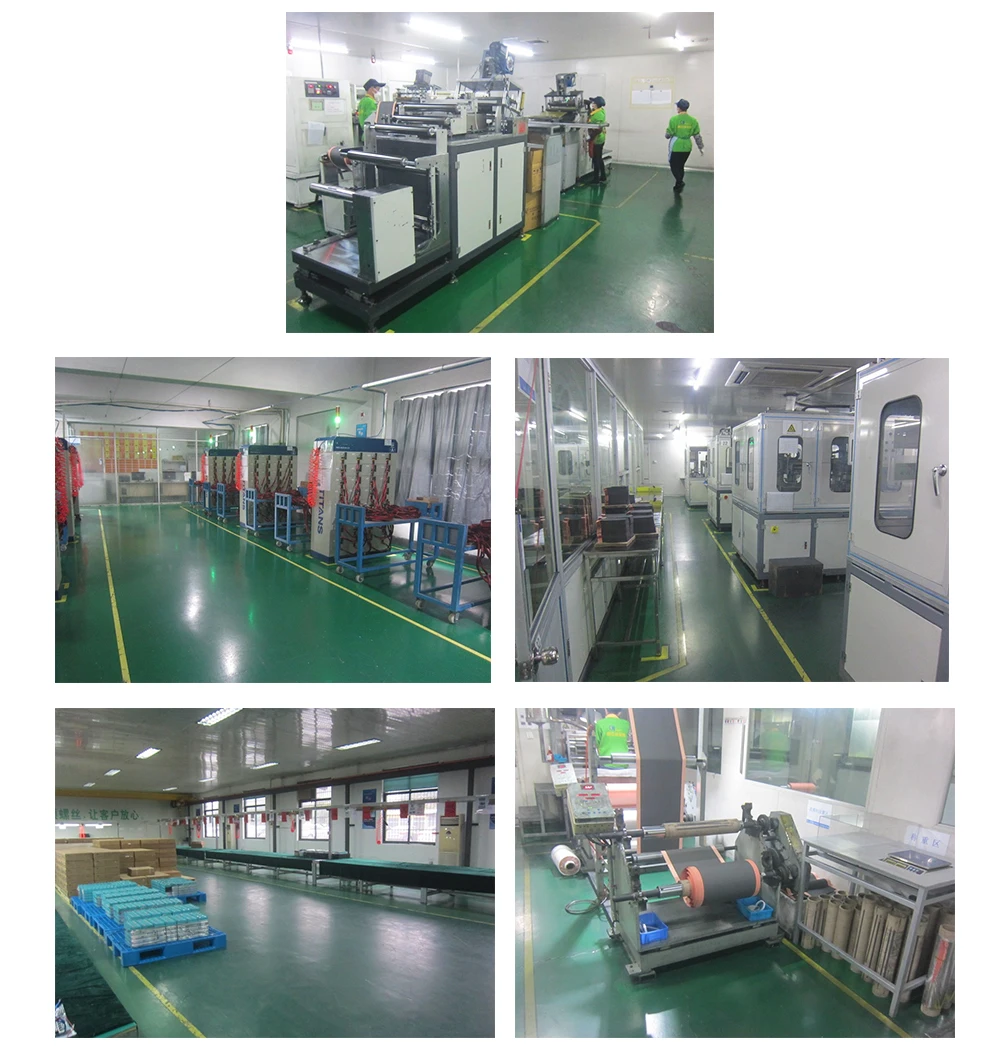

 Company Products & Quality Control:
