Model NO.
Extension Plug
Delivery:
FOB
Quantity:
  • Place of Origin:Zhejiang
  • Model Number:Extension Plug
  • Brand Name:Deligreen
  • product name:Extension Plug Tesla Factory Outlet Ev Mobile Charging Box
  • Calb Length:5M Customizable
  • Types of cable:Straight Spiral
  • Application::Veichles Charging Station,electric Vehicle
  • Certificate::CE ROHS TUV UL94
  • Mechanical life::10000 TIME
  • Logo color:Customizeable
  • Type:Stand groud
  • Material:Imported TPU,Pure Colly
  • Warranty:2 years

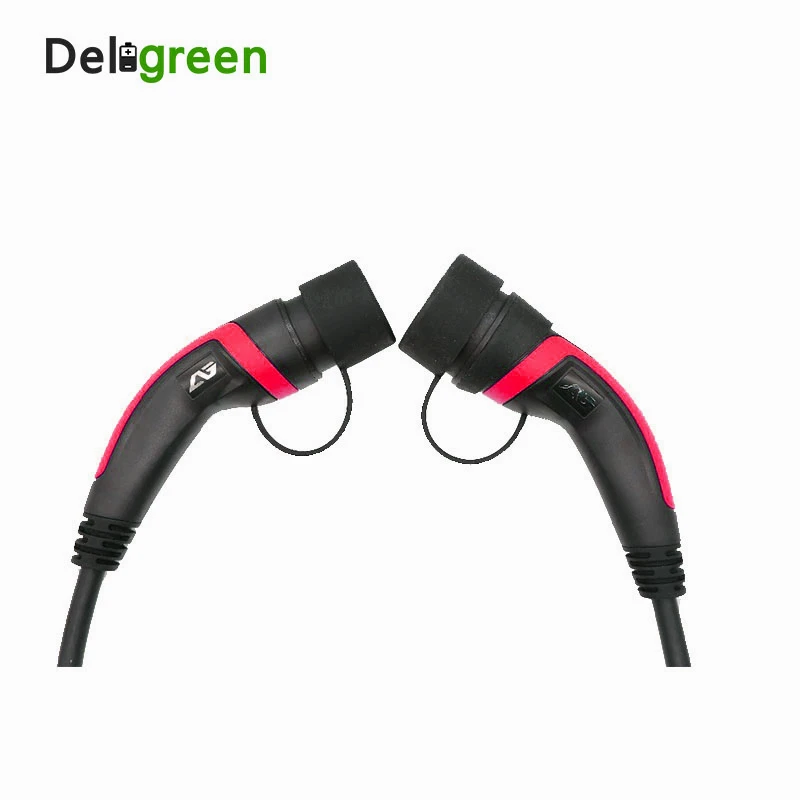

TYPE1- TPPE2 16A Extension Plug Tesla Factory Outlet Ev Mobile Charging Box



Product Description



Brief Introduction

The IEC62196 Charging cable with plug is compatible with models from brands such as BMW, Volkswagen, Audi, Mercedes, Porsche,
Volvo, Tesla and even Renault. It is one of the most popular connectors in terms of electric vehicles.

Mechanical Properties
Mechanical life
no-load plug>10000
Insertion force:
<100N
Impact of external force
can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
The rated current
16A,20A,32A
The rated voltage
120V,250V
Insulation resistance
> 1000MΩ (DC500V)
Pins temperature rise
<50K
Withstand voltage
2500V
Contact impedance
0.5mΩ Max

Cable optional for Straight & Spiral , Single phase & Three phase optional



Related Products



IEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs Leads



IEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs LeadsIEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs Leads

IEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs Leads

IEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs Leads

IEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs LeadsIEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs LeadsIEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs LeadsIEC62196 To J1772 Mennekes Type Fast EV Charging cable plugs Leads

Company Information









Our Advantages



1. OEM Manufacturing welcome: Product, Package. At least 100 pcs.
2. We will reply you for the inquiry within 12 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you
got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us,
4.1.Conform to the provisions and requirements of SAE J1772-2012, IEC 62196-2 2016 2-I

5.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
6.XLPO for cable insulation prolonging the aging resistance  life-span, TPU sheath improved the bending life and wear resistance of cable
7.Excellent protection performance, protection grade achieved IP55 (working condition)

8.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey)
